Contour Properties

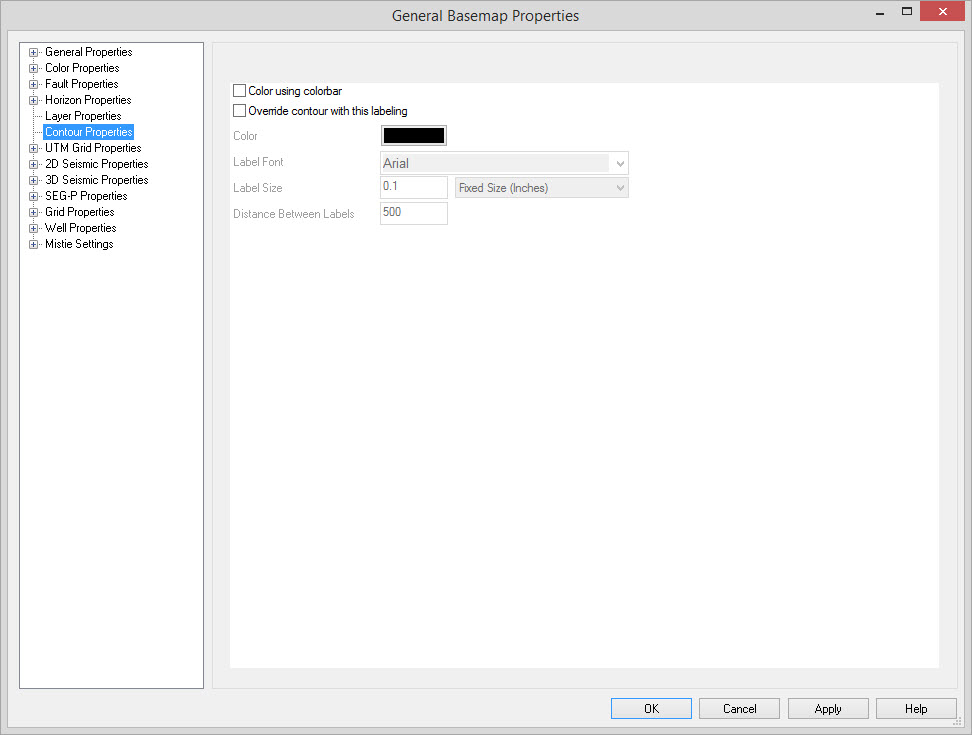

Use this dialog to change the annotation for contours. This is quicker
and easier than re-contouring grids, however, you can not add or remove
contours, only alter their appearance.
Contour Parameters
Color using
colorbar: The contour lines will
be colored using the Z-value of the contour and the colorbar being
used. Note: If a ribbon is displayed as well, the contours may become
very difficult to see.
Override Contour With This Labeling:The parameters defined below will be used to label the contours. This overrides the settings defined when the contours were created.
Override Contour With This Labeling:The parameters defined below will be used to label the contours. This overrides the settings defined when the contours were created.
Label Parameters
Color, Label Font,
Label Size: Specifies the
color, font and size of the text for the contour. Note:
Fixed sized labels will remain the same regardless of the map scale.
Variable sized labels will scale with the map scale.
Distance Between Labels: The distance between contour labels along the contour, specified in the map units. The map units is based on the Coordinate System settings of our project.
Distance Between Labels: The distance between contour labels along the contour, specified in the map units. The map units is based on the Coordinate System settings of our project.
